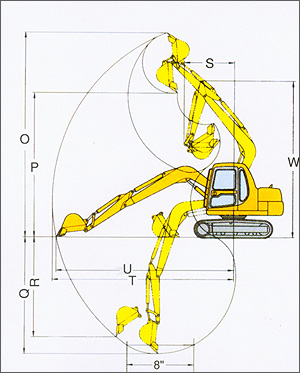

Dimension
| |
| > Bucket capacity (m 3 )--------- -------------------------------------------------------------------------------------0.28 m3 |
|
| > Engine power------------------------------------------------------------ ------------------- --------------- 45kw/2200rpm |
|
| > O Max. digging height-------------- -------------------------------------------------------------------------------7165 mm |
|
| > P Max. dump height ---------------- ------------------------------------------------------------------------------5068 mm |
|
| > Q Max. digging height------- ----------------------------------------------------------------------------------- ---4038 mm |
|
| > R Max. vertical digging height -- ------- --------------------------------------------------------------------------- - 3505 mm |
|
| > T Max. digging radius-------------------------------------------------------------------------------------- ------- 6333 mm |
|
| > U Max. ground digging radius-------------------------------------------------------------------------- --------- ----6182mm |
|
| >
Max. bucket digging force------------------------------------------------------------------ ------ -------------------52.7kN |
|
| > Slewing speed ----------------------------------------------------------------------------------------------------11.2 rpm
| |
| > Travel speed--------------------------------------------------------------------------low speed2.7km/h & high speed 5.1km/h |
|
| >
Gradeability------------------------------------------------------------------------------------------------------------35 |
|
| > Ground pressure--------------------------------------------------------- ------------------------------------ ------30 kpa
| |
| > R Tail slewing radius---------------------------------------------------------------------------------------------1755 mm |
|
