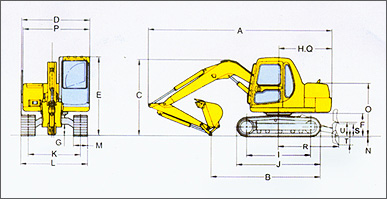

Dimension
| |
| > A --Overall length (transportion) --------- ---------------------------------------------------------------------------6103
mm |
|
| > C --Overall height (boom top) ------------------------------------------------------------ ------------------- ------ 2515
mm |
|
| > D --Overall width ----------------- -------------------------------------------------------------------------------2198 mm |
|
| > E --Overall height (cab top) ---------------- ------------------------------------------------------------------------2630 mm |
|
| > G- -Min. ground clearance------- ------------------------------------------------------------------------------- --381.5 mm |
|
| > H --Min. slewing radius of working device -- ------- ------------------------------------------------------------------ 1792 mm |
|
| > I ---Length of track on ground-------------------------------------------------------------------------------------- 2130 mm |
|
| > J -- Track length------------------------------------------------------------------------------------- ------------2757 mm |
|
| > K-- Track gauge-------------------------------------------------------------------------- ------ -----------------1700 mm |
|
| > L---Overall length of track
------------------------------------------------------------------------------------------2150mm
| |
| > M --Width of track plate--------------------------------------------------------------------------------------------450 mm |
|
| > N --Thickness of track plate -----------------------------------------------------------------------------------------26 mm |
|
| > O --Min. slewing radius of working device Upper height --------------------------------------------------------- --------5496 mm
| |
| > R --Tail slewing radius---------------------------------------------------------------------------------------------1755 mm |
|
