| Basic Parameters |
|
| Operating weight ---------------------------------------------------- ----------------------------------------------- 8400 kg |
|

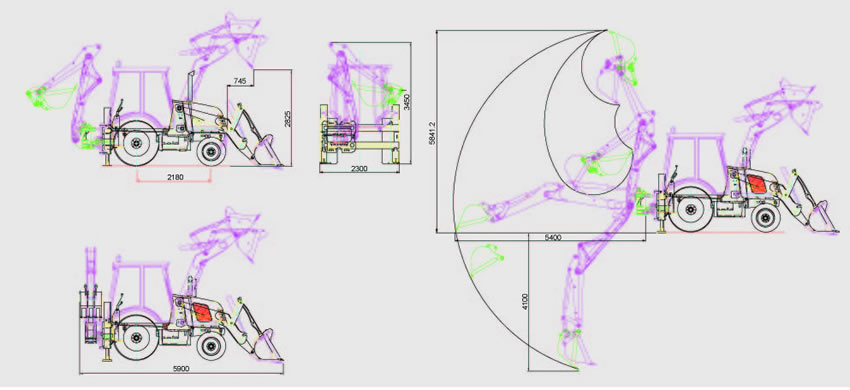

| Overall dimensions ---------------------------------------------------------------------------- ------ ---5900x2300x3450 mm |
|
| Max travel speed (froward / back) ------------------------------------------------------------------------ ------40.2/48.6 km/h |
|
| Wheel base --------------------------------------------------------------------------------------------------------2180mm |
|
| Turning radius------------------------------------------------------------------------------------------------------4428mm |
|
| Tires (F/R)-------------------------------------------------------------------------------------------------14-17.5/19.5L-24 |
|
| |
|
| Oil Pump |
|
Oil pump model ----- ------------------------------------------------- --------------------------------------------CBGj3063
|
|
Rated speed --------------------------------------------------------- ----------------------------------- --------- 2200rpm
|
|
| Rated pressure -------------------------------------------------------------------- ---------------- -------------- ---20Mpa |
|
| ---------------------------------------------------------------------------------------------------- |
|
| Engine |
|
| Rated power------ ----------------------------------------------------------------------------------------------------82kw |
|
| Rated speed -------- ----------------------------------------------------------------------------------------------2200rpm |
|
| Model- ----------------------------------------------------------------------- -------------------------------- -----QSB4.5 |
|
| Type ------------------------------------------------------------------------------- |
|
| Displacement ----------------------------------------------------------------------------------------------------------4.5L |
|
| Fuel consumption ------------------------------------------------------------------------------------- ------ --- --235g/kw.h |
|
| ----------------------------------------------------------------------------------- ------ --- |
|
| Loading parameters |
|
| Bucket capacity---------------------------------------------------------------------------------------------------------1m3 |
|
| Dumping clearance -------------------------------------------------------------------------------------------- ----2825 mm |
|
| Dumping distance -------------------------------------------------------------------------------------------------- 745 mm |
|
| Brake-out force------------------------------------------------------------------------------------------------------- 42KN |
|
| ---------------------------------------------------------------------------------------------------- - |
|
| Excavating parameters |
|
| Digger capacity -------------------------------------------------------------------------------------------------0.20-0.35m3 |
|
| Max digging depth --------------------------------------------------------------------------------------------------4100mm |
|
| Max digging radium-------------------------- -----------------------------------------------------------------------5400mm |
|
 |
 |
