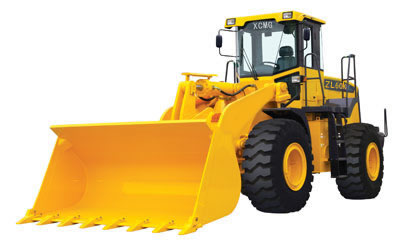

ZL-60 Wheel Loader with full range of flexible power transmission suspension damping; double pump confluence of technology, flow amplified steering, pilot control; high strength frame suitable for heavy operating conditions; XCMG body makes exclusive unloading work greatly reduce the impact; fully hydraulic wet brake, operations, driving safety and reliability; adjustable instrument panel, easy to find their own best operating position; intelligence electronic surveillance system, accurate operation of the machine condition monitoring--------------------------------------------------------------------
Proven components
> Import Cummins QSC8.3 EFI, turbocharged, air-cooled engine, electric start, electric flame, emission requirements to meet the TIRE-3 stage, high-performance, low fuel consumption, environmental protection, energy saving, powerful.
> ZF transmission electro-hydraulic control provides smooth shifting, advanced performance and reliability; KD file function to reduce the frequency shift operations to improve operating efficiency.
> Wet กค ZF limited slip axle, brake installed on the drive axle, the water and dust can not enter, no maintenance, even in the soft zone or water walking, do not affect the drive and braking; swing rear axle center to reduce the additional torque and the load on the transmission of shocks.
Excellent performance
> Dual pump confluence system, hydraulic flow amplified steering, single lever pilot control, light and flexible.
> Turn limit the hydraulic control, mechanical double limit, liquid limit than the mechanical limit control and reduce the impact.
> Use of electromagnetic positioning technology, with bucket flat function automatically, reducing the driver's work intensity and improve efficiency; with the boom up high limit function to prevent the mechanical impact, reducing driver fatigue.
> Long wheelbase, hinged center in layout, machine stability. Frame around the central hinge bearing design proven, robust frame skeleton, even in the bumpy road, but also to withstand repeated distortions.
Safe and reliable braking
> Full hydraulic wet braking, emergency braking and parking brake combo, protect your operating traffic safety.
Reliable structural strength
> Focus on the overall structural strength, finite element analysis and other methods to reduce stress concentration, elimination of local weaknesses, ensure that it meets all state insurance Heavy.
Comfortable operating environment
> Split new cab, vision cleared, sealed vibration, with air conditioning, radio cassette recorders, four position adjustable seat. Comfortable operating environment, security is fully reflected the harmonious man-machine, operator comfort, while greatly enhancing efficiency.
> Steering column and instrument panel can be tilted as a whole, only one person can change the steering column lever angle, the best place to find their own, while the design of a font set pieces, more clearly observed on the monitor information, seize the vehicle status becomes clear.
> New monitoring system to enable the operator through the control panel displays information for real-time monitoring of the machine.
Easy maintenance
> Centralized oiling, so maintenance personnel can reach maintenance points on the ground, eliminating the need for a climb on the low efficient.
> Guard after guard on both sides of plate and easy to open and close the engine and surrounding parts of the examination, routine maintenance becomes very easy
|
|
