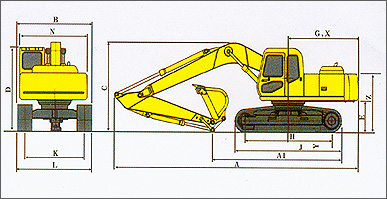

Dimension
| |
| > A --Overall length (transportion) --------- ---------------------------------------------------------------------------7576 mm |
|
| > A1 -Grounding length (mm) -------------------------------------- --------------------------------------------------4402 mm |
|
| > B --Overall width------------------------------------------------------------ ------------------------------ ------ 2489
mm |
|
| > C --Overall height (in transportation) - -------------------------------------------------------------------------------2780 mm |
|
| > D-- Body overall height (cab top)
----------- ------------------------------------------------------------------------2813 mm |
|
| > E - -Clearance of super structur -------------- ---- ---------------------------------------------------------------- --870 mm |
|
| > F - -Min. clearance (mm) -- ------- --------------------------------------------------------------------------------- 433 mm |
|
| > G -- Rear slewing radius ------------------------------------------------------------------------------------------ 2015 mm |
|
| > H -- Track grounding length --------------------------------------------------------------------------- ------------2750 mm |
|
| > J - - Track length------------------------------------------------------------------------ -- ------ ----- -- -------3486 mm |
|
| > L--- Track width -------------------------------------------------------------------------------------------------2460mm
| |
| > M -- Track board width --------------------------------------------------------------------------------------------500 mm |
|
| > V -- Min. slewing radius of working device -------------------------------------------------------------------------- -2495 mm |
|
> X -- Distance from slewing center to rear --------------------------------------------------------- -------------------2015 mm
| |
| |
|
