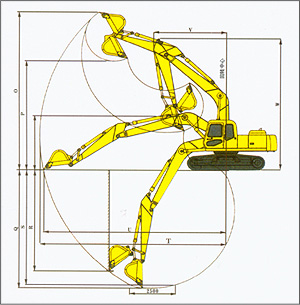

Dimension
| |
| > Bucket capacity (m 3 )--------- -------------------------------------------------------------------------------------0.53 m3 |
|
| > Engine power------------------------------------------------------------ ------------------- --------------- 82kw/2200rpm |
|
| > O Max. digging height-------------- -------------------------------------------------------------------------------8630 mm |
|
| > P Max. dump height ---------------- ------------------------------------------------------------------------------6180 mm |
|
| > Q Max. digging height------- ----------------------------------------------------------------------------------- ---5501 mm |
|
| > R Max. vertical digging height -- ------- --------------------------------------------------------------------------- - 4940 mm |
|
| > T Max. digging radius-------------------------------------------------------------------------------------- ------- 8309 mm |
|
| > U Max. ground digging radius-------------------------------------------------------------------------- --------- -- -8180 mm |
|
| >
Max. bucket digging force------------------------------------------------------------------ ------ -------------------78.4 kN |
|
| > Slewing speed ----------------------------------------------------------------------------------------------------12.6 rpm
| |
| > Travel speed--------------------------------------------------------------------------low speed3.1 km/h & high speed 5.3km/h |
|
| >
Gradeability------------------------------------------------------------------------------------------------------------35 |
|
| > Ground pressure--------------------------------------------------------- ------------------------------------ -- -- 42.4kpa
| |
| |
|
